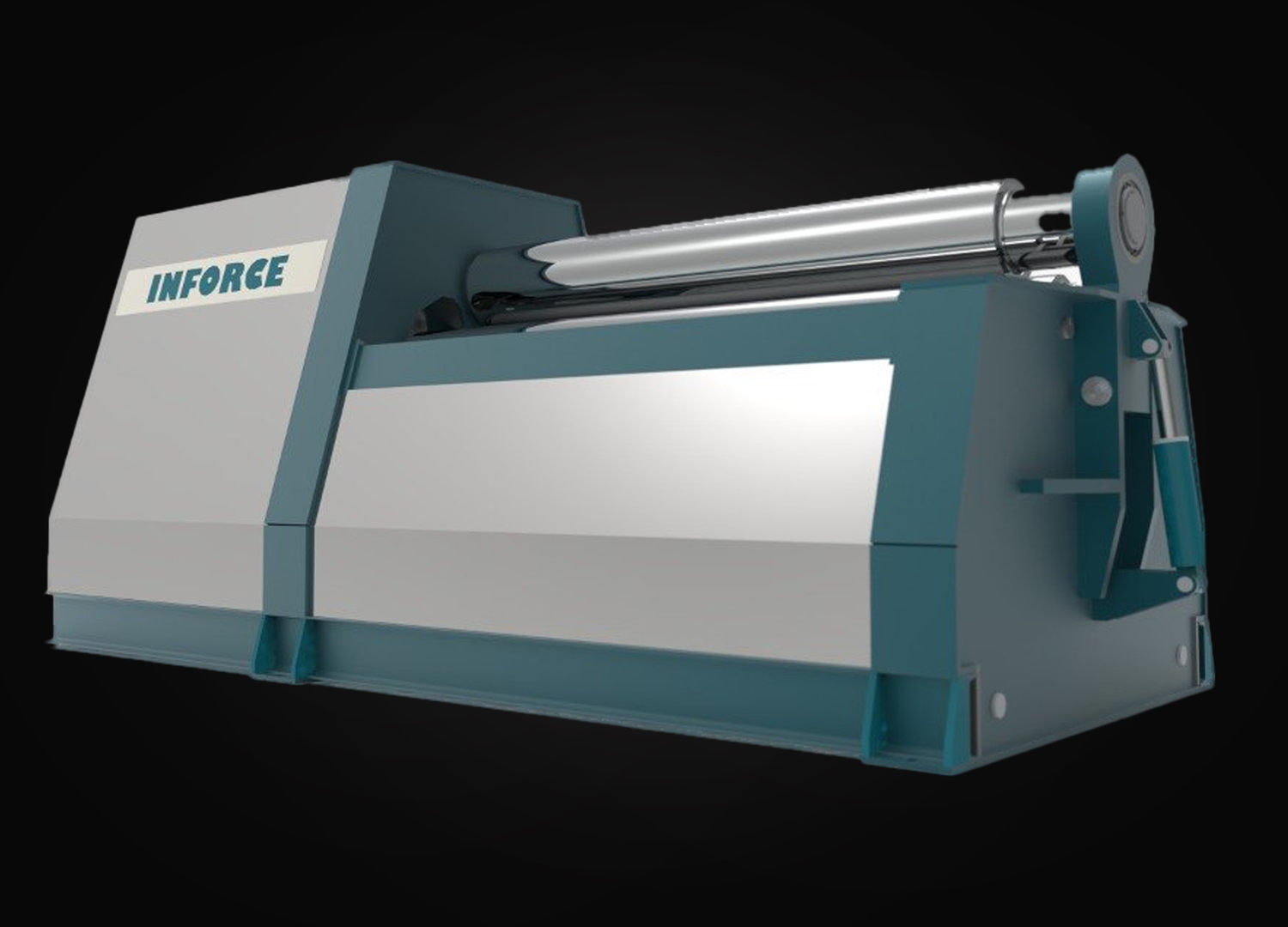

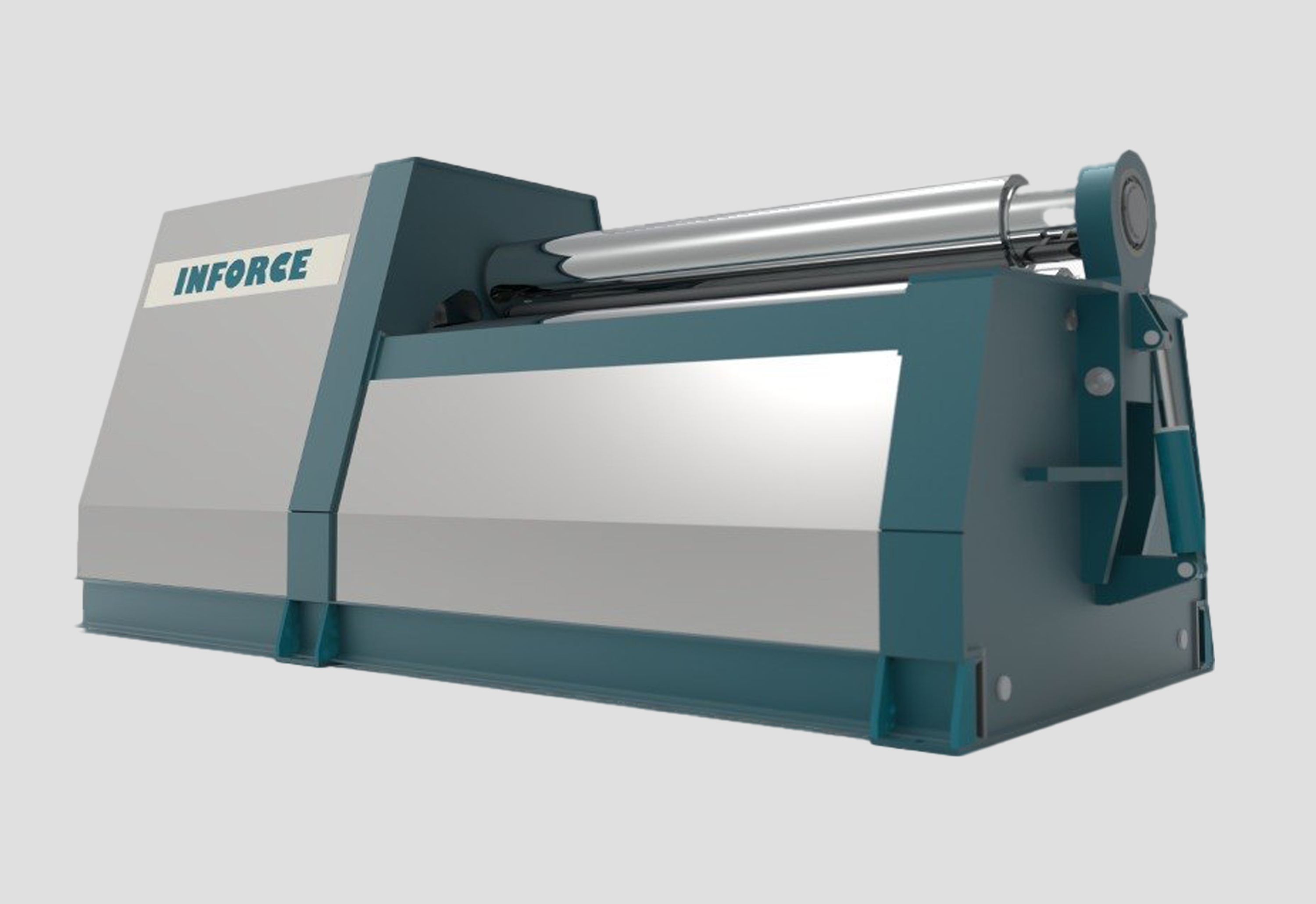

Plate Rolling Machines in Saudi Arabia
Ideal for sectors such as construction, energy, and manufacturing, Tommaso Seravesi machines feature robust builds, advanced hydraulic systems, and intuitive CNC controls for maximum productivity. Whether for light or heavy-duty applications, they deliver consistent, high-quality results.
With local support and technical expertise, we provide complete solutions—from machine selection to after-sales service—ensuring optimal performance in your production environment. Experience world-class rolling technology trusted by professionals worldwide.
- 4 Rolls Pyramidal With Double Pre-Bend

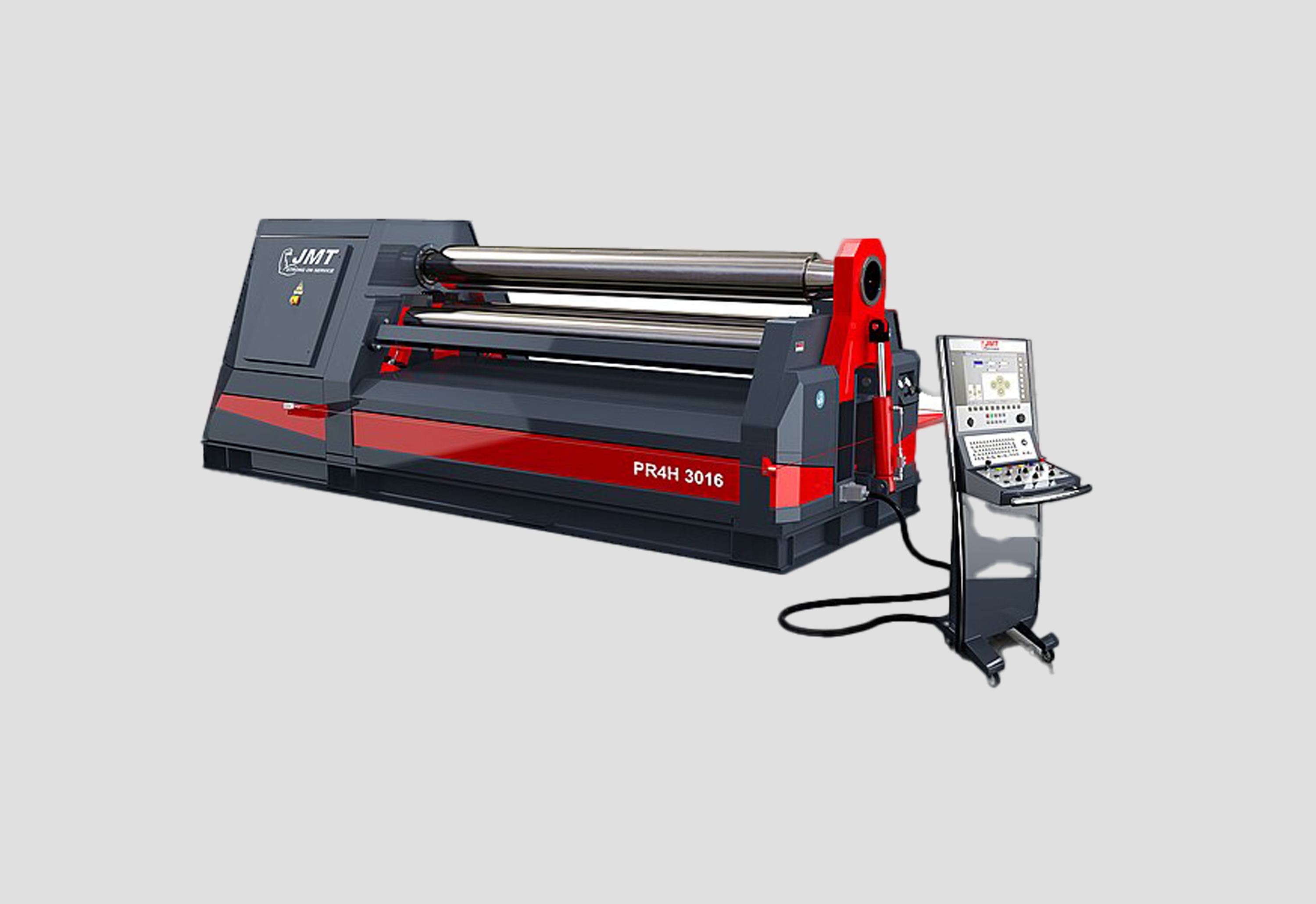

- Plate Bending Machines 3 Rolls With Variable Geometry And Double Pre-Bending
- Hydraulic Press Presses With Mobile Piston And Fixed Gantry
- Presses With Fix Piston And Gantry
- Presses With Mobile Piston And Gantry
- Hydraulic Manipulators
- Hydraulic Flanging Machines
The E79 series bending machines are available with a capacity from 25mm to 300mm and roll length from 1000mm to 6000mm.
|
Feature |
Description |
|
Recommended Plate Thickness |
From 25 mm to 300 mm (medium to large thicknesses) |
|
Compact Design |
Reduced overall size and shorter straight section compared to four-roll machines |
|
Conical Bending Capability |
All three rolls tilt, allowing easy and precise conical bending |
|
Pre-Bending Quality |
Excellent pre-bending achieved using the top roll as a high-force bending press |
|
Innovative Geometry |
Bottom rolls move horizontally and independently; the motorized top roll moves vertically |
|
Versatile Rolling |
Variable bottom roll distance allows bending of both thick and thin plates |
|
Dual Functionality |
Acts like two machines in one due to the variable axis configuration |
|
Cone Formation |
Independent tilt (up to 2°) of all three rolls simplifies cone production |
|
Operator Safety |
Plate remains horizontal throughout operations; includes an emergency stop button |
|
Ease of Use |
Accessible hydraulic parts and an intuitive control panel with diagnostics |
|
Compact Footprint |
Space-saving design that does not require a foundation pit for certain sizes |
The RI72 series bending machines are available with a capacity from 25mm to 300mm and roll length from 1000mm to 6000mm.
|
Feature |
Description |
|
Perfect Pre-Bending |
Achieves a minimum straight section (3–4× shorter than PSG systems) using high-force cylinders with direct linear motion (no levers). |
|
Roll Positioning Precision |
Maintained over time via a linear guide system; bottom rolls are guided within the structure to prevent wear-related clearance. |
|
Friction-Free Movement |
Sliding friction is eliminated with a lubricated bronze guide system. |
|
Bottom Roll Parallelism |
Guaranteed with dual linear potentiometers per roll; independent roll adjustment allows for easy cone bending. |
|
Structural Robustness |
Built with solid structural steel and linear configurations for long-term durability. |
|
Speed & Reliability |
Delivers high-quality, consistent results at fast operational speeds. |
|
Ease of Use & Maintenance |
Hydraulic components are easily accessible, with intuitive diagnostics via an operator-friendly control panel. |
- Insert the plate between the rolls
- Align the plate with the side roll (angled)
- Clamp the plate between roll D and C
- Create the pre-bending using roll A
- Continue with forming the required diameter of plate between the rolls using both roll A and roll B.
- Create the second pre-blending using roll B.
Check out our new Hydraulic Presses and Manipulators in Saudi Arabia
