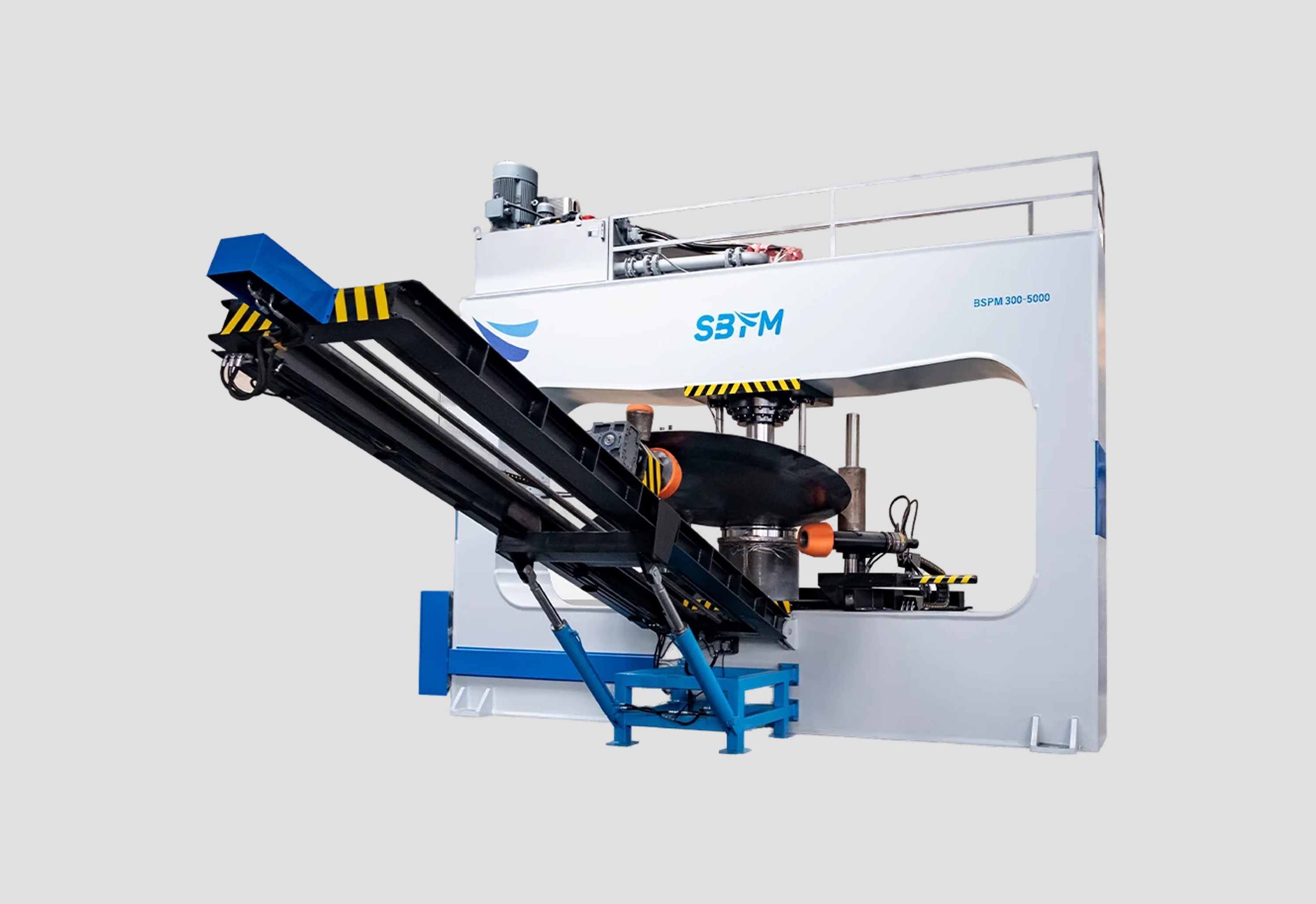

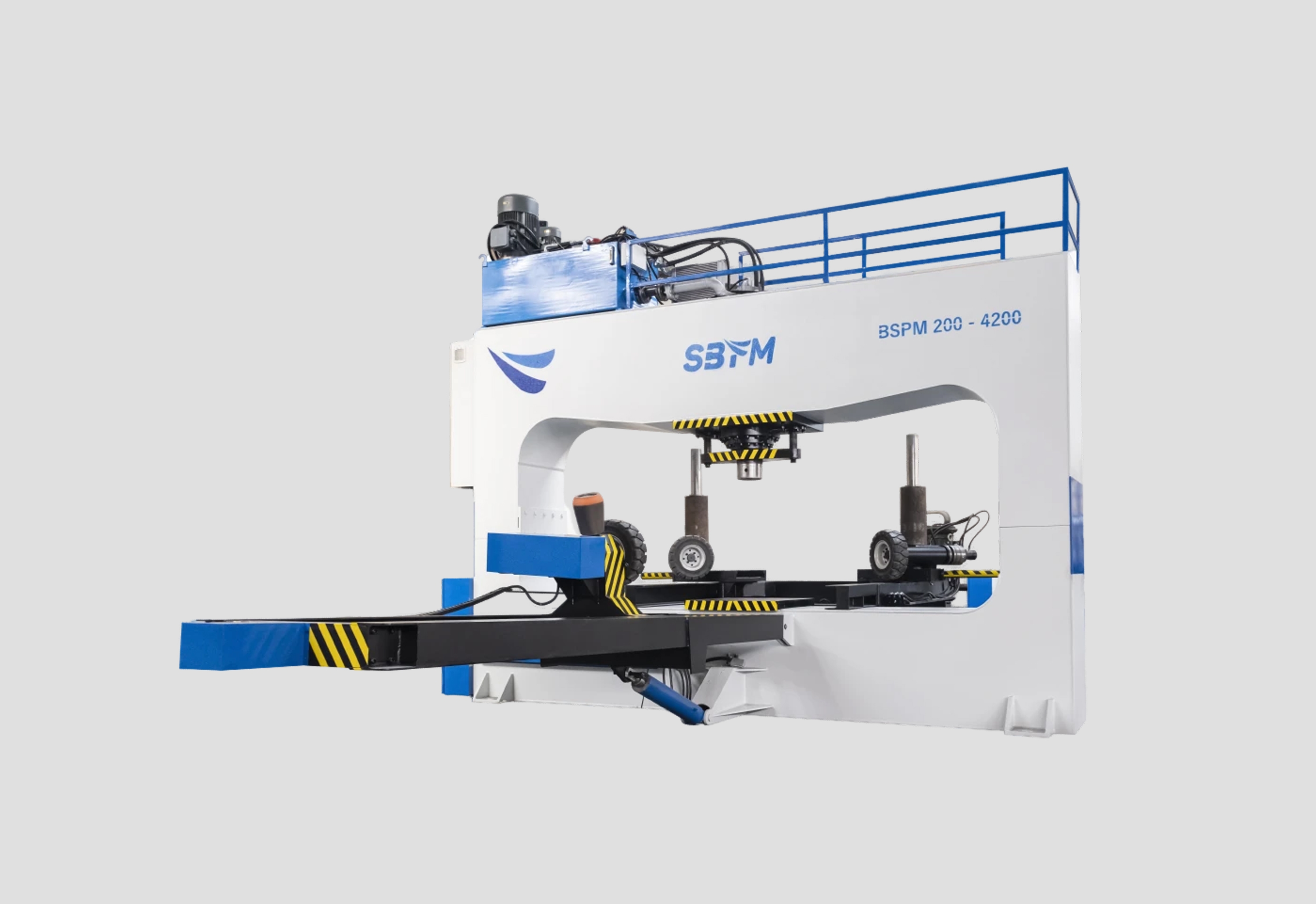

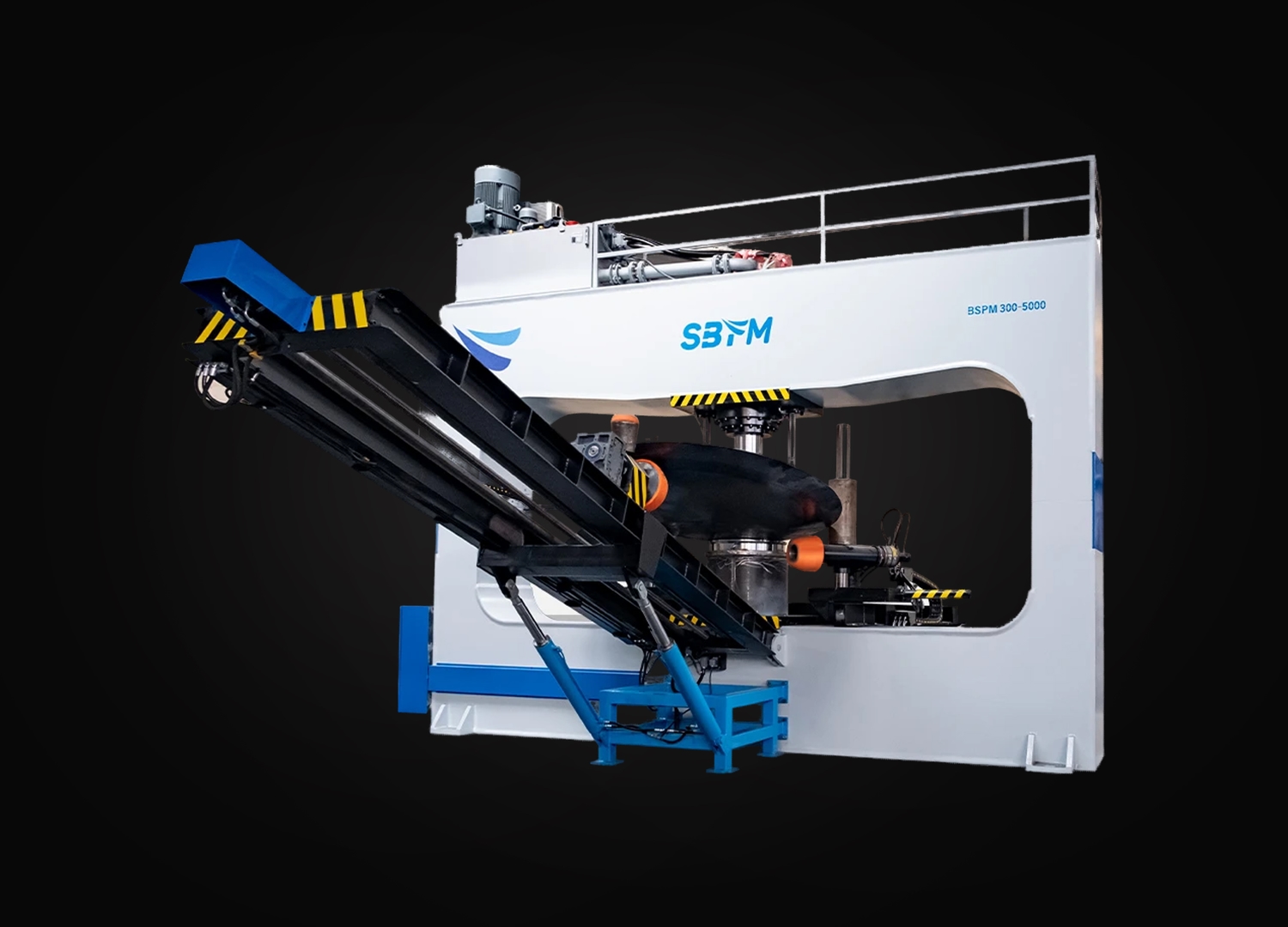

Hydraulic Presses and Manipulators in Saudi Arabia
Available in both fixed and mobile configurations, these machines offer exceptional load capacity, stability, and control. Paired with reliable hydraulic power units—either stationary or mobile—they ensure efficient and safe operation in demanding environments.
Our solutions are built for durability, ease of use, and adaptability to various load sizes and site conditions. With local support and expert service, we provide complete hydraulic lifting solutions tailored to your industrial needs.
Key Features of Presses
RELIABLE Thanks to their particular construction concept, the existing forces are not unloaded on the fastening screws of the mechanical parts but rather on specially sized pins based on the machine’s power. The particular construction of both the upper and lower crossbars means that the seat of the cylinder lies on the neutral axis to avoid any points subjected to high stress.
EASY to maintain thanks to easy accessibility of the electrical and hydraulic parts and thanks to diagnostics in the control panel that is always at the operator’s fingertips. Book your hydraulic bresses in Saudi Arabia today.
CE Certified Hydraulic Presses – Structure and Key Components
Our hydraulic presses are engineered for precision and durability, incorporating advanced European components and strict CE certification standards. Below is a breakdown of the structural and functional elements of our press systems:
Main Structure
|
Component |
Details |
|
Frame Type |
- Low basement, two side uprights, upper crossbar - Monolithic structure for low-tonnage presses |
|
Materials |
Electro-welded plates of varying thicknesses |
|
Heat Treatment |
Stress relieving to remove welding stress |
|
Surface Finish |
Sandblasting and pre-coating preparation |
|
T Slots |
Present on both lower bed and moulding plate for direct mould fixing |
Hydraulic System
|
Component |
Details |
|
Hydraulic Unit |
Includes motor-pump, electro valves, and pressure relief valves |
|
Mounting Position |
Located above the upper crossbar |
|
Connection |
Direct via pre-filled valves to the hydraulic cylinder |
|
Cylinder Design |
Fast descent, low power use; 2 or 4 guide columns prevent rod rotation |
|
Cooling System |
Air or water-cooled hydraulic oil system |
Electrical & Control System
|
Component |
Details |
|
Electrical Brands |
Siemens, ABB, Telemecanique, Moeller |
|
Control Console |
Movable or flag-type console, low-voltage, linked to main cabinet |
|
PLC System |
Siemens S7 |
|
Positioning Sensor |
Linear potentiometer on cylinder for position tracking and program control |
|
Touchscreen Panel |
SIEMENS KTP1200 PN, 12" colour display with diagnostics and control settings |
|
Remote Control |
Modem for PLC access, software updates, and troubleshooting |
Advanced Features
-
Real-Time Monitoring: View cylinder position, speed, pressure, and alarm status.
-
MFB Manipulator Integration: Panel shows axis data and diagnostics if equipped.
- Versatility: Adaptable for custom moulds and configurations.
