HSM Flanging Machines in Saudi Arabia

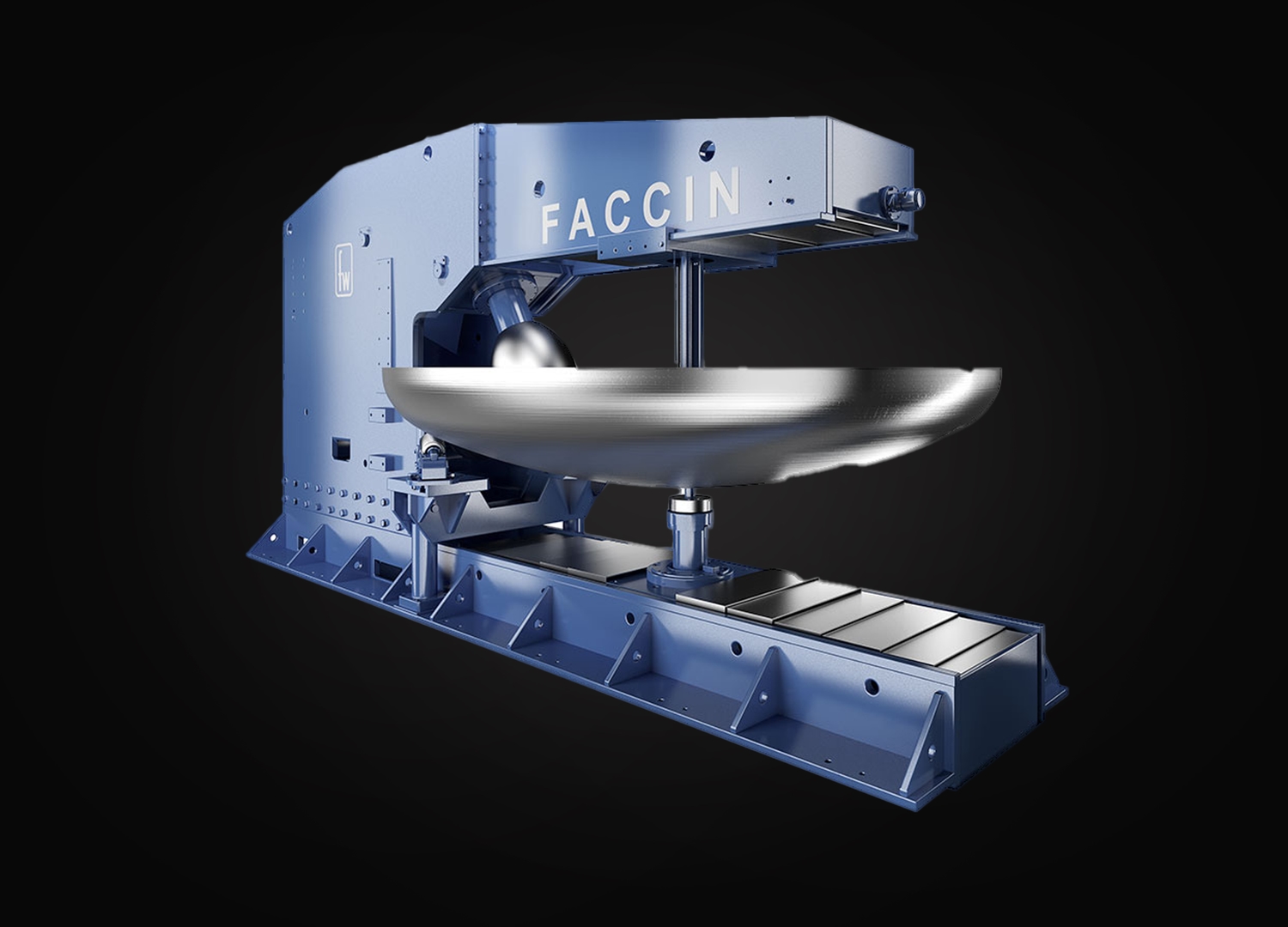

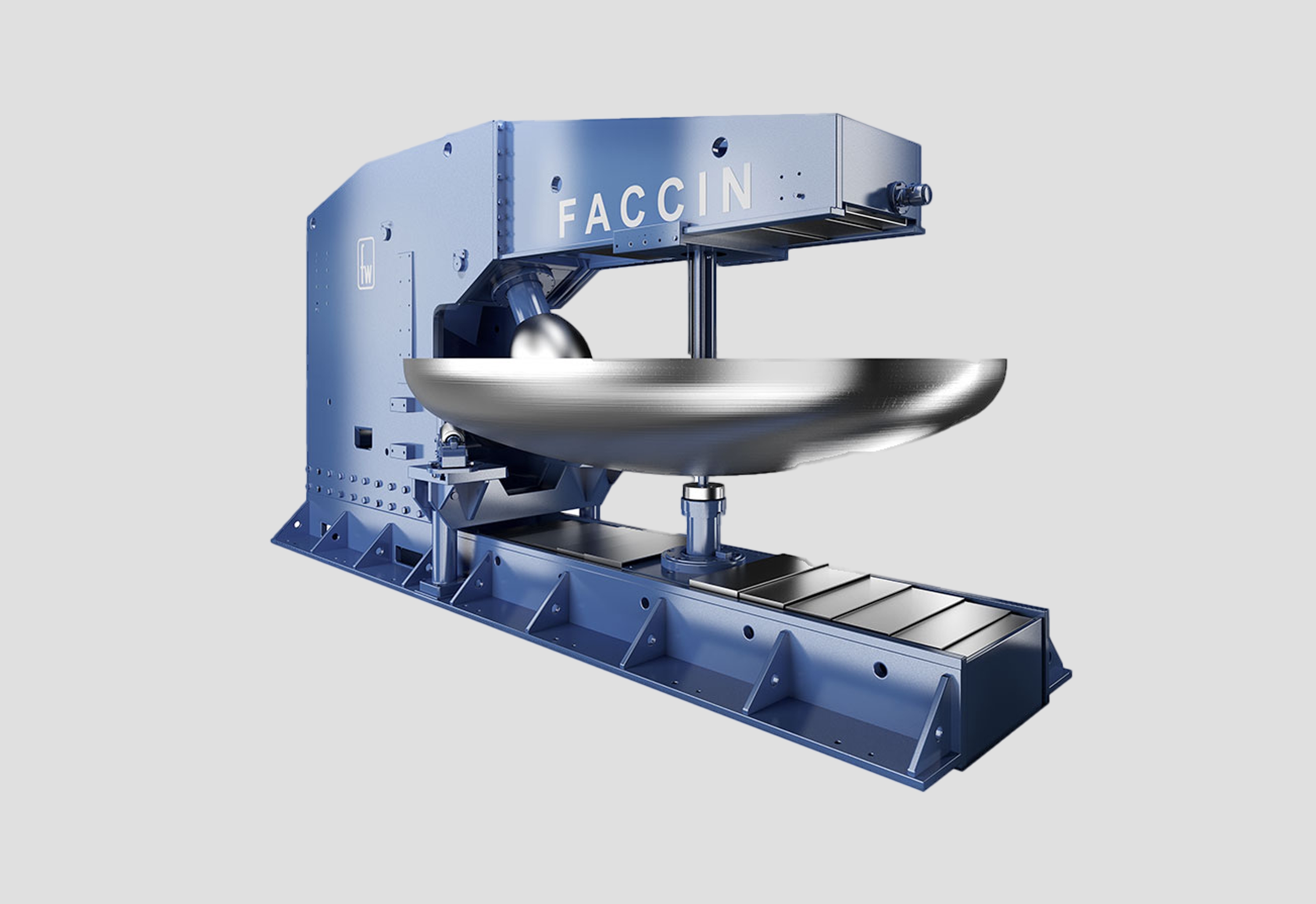

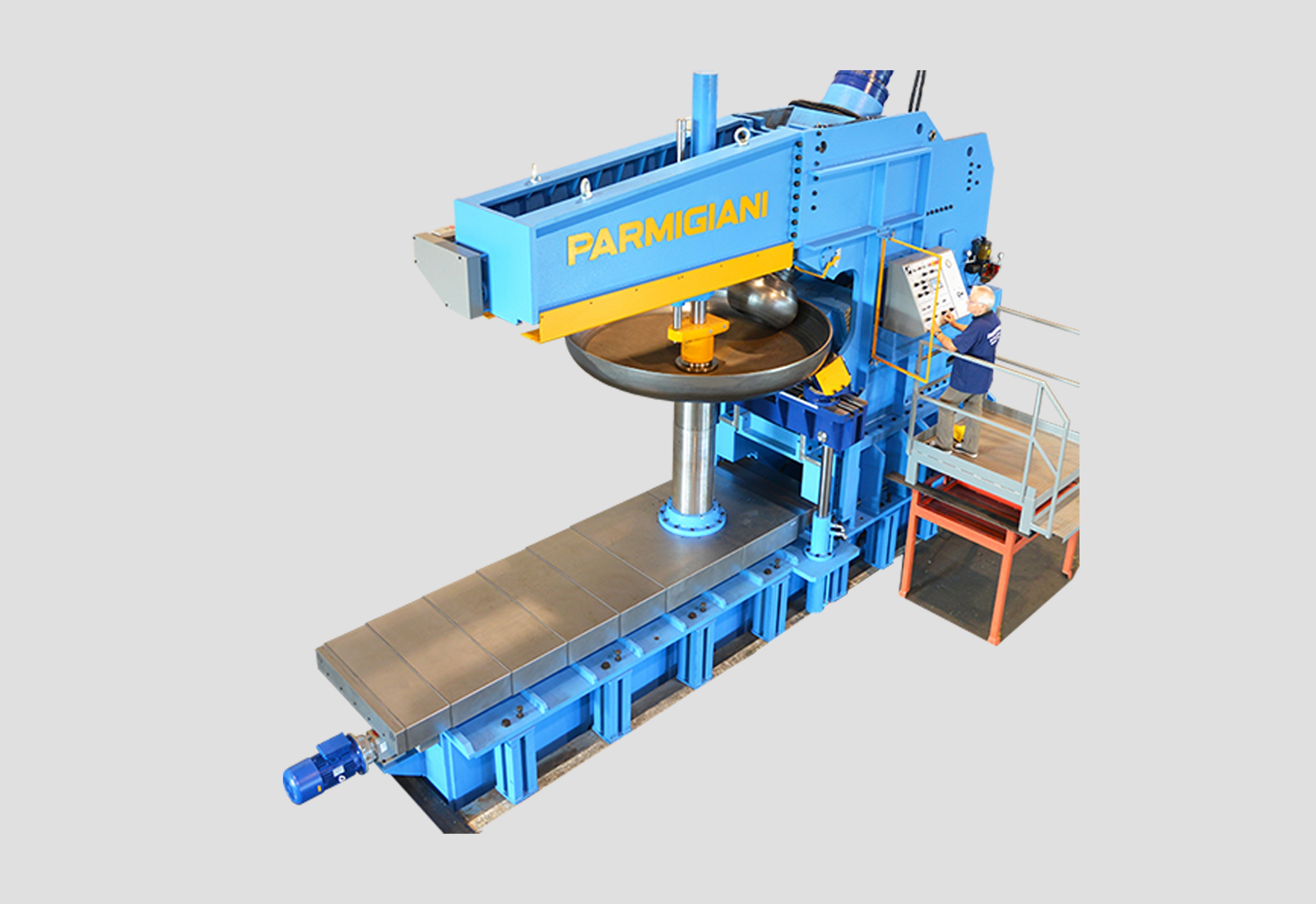

We proudly distribute HSM Flanging Machines in Saudi Arabia and the GCC, offering advanced hydraulic solutions for pressure vessel and tank manufacturing. HSM machines are fully hydraulic and designed to complete the production of dished ends by flanging a wide range of geometries, including flat, dished, conical, elliptical, semi-elliptical, and semi-spherical heads.
These machines ensure precise, high-quality flange bending with consistent repeatability, making them ideal for industries such as petrochemical, energy, and fabrication. Built for strength, reliability, and user-friendly operation, HSM flanging machines integrate seamlessly into automated or standalone production lines.
With strong technical support and local service, we provide turnkey solutions tailored to your forming requirements in the region.

HSM Flanging Machines – Structure & Key Features

HSM flanging machines are CE-certified, fully hydraulic systems designed for high-precision forming of dished ends. Built with robust materials and cutting-edge hydraulic control, they ensure smooth, mark-free surfaces with consistent accuracy and productivity.

Key Performance Features

Feature	Description
Precision Tolerance	Achieved through rigid structure, precise motion, and proportional hydraulics
Surface Quality	Even smooth finish ensured by controlled roll movement
Productivity & Usability	High output rates with intuitive operation
Hydraulic System	Equipped with proportional valves and variable displacement pumps
Cooling System	Air or water cooling for hydraulic oil
Lubrication	Centralized automatic system with programmable control
Remote Diagnostics	Modem connection for PLC updates and troubleshooting

Machine Structure & Mechanics

Component	Specification
Main Frame	Electro-welded steel plates, heat-treated for stress relief
Bottom-Holder Carriage	Moves on recirculating ball bearing bushes with ball screw drive
Forming & Shaping Rolls	Forged and tempered 42CrMo4 alloy steel
Roll Motorisation	Hydraulic motor with epicyclic gear or electric motor for tilting types
Main Shaft Bearings	SKF or FAG bearings for durability
Cylinders	Alloy/carbon steel with chrome-plated rods, high-quality seals
Linear Potentiometers	Mounted on each cylinder for electronic positioning control

Control System

Component	Details
Electrical Components	Siemens, ABB, Telemecanique, Moeller
PLC System	SIEMENS S7 with diagnostics
Touchscreen Panel	SIEMENS KTP1200 PN, 12” colour display
Control Panel Location	Fixed console on right side for optimal visibility
Functions via Touch Panel	Roll positioning, bottom-holder settings, speed control, diagnostics, alarms
