Horizontal Hydraulic Bending Machines – Distributor in Saudi Arabia & GCC

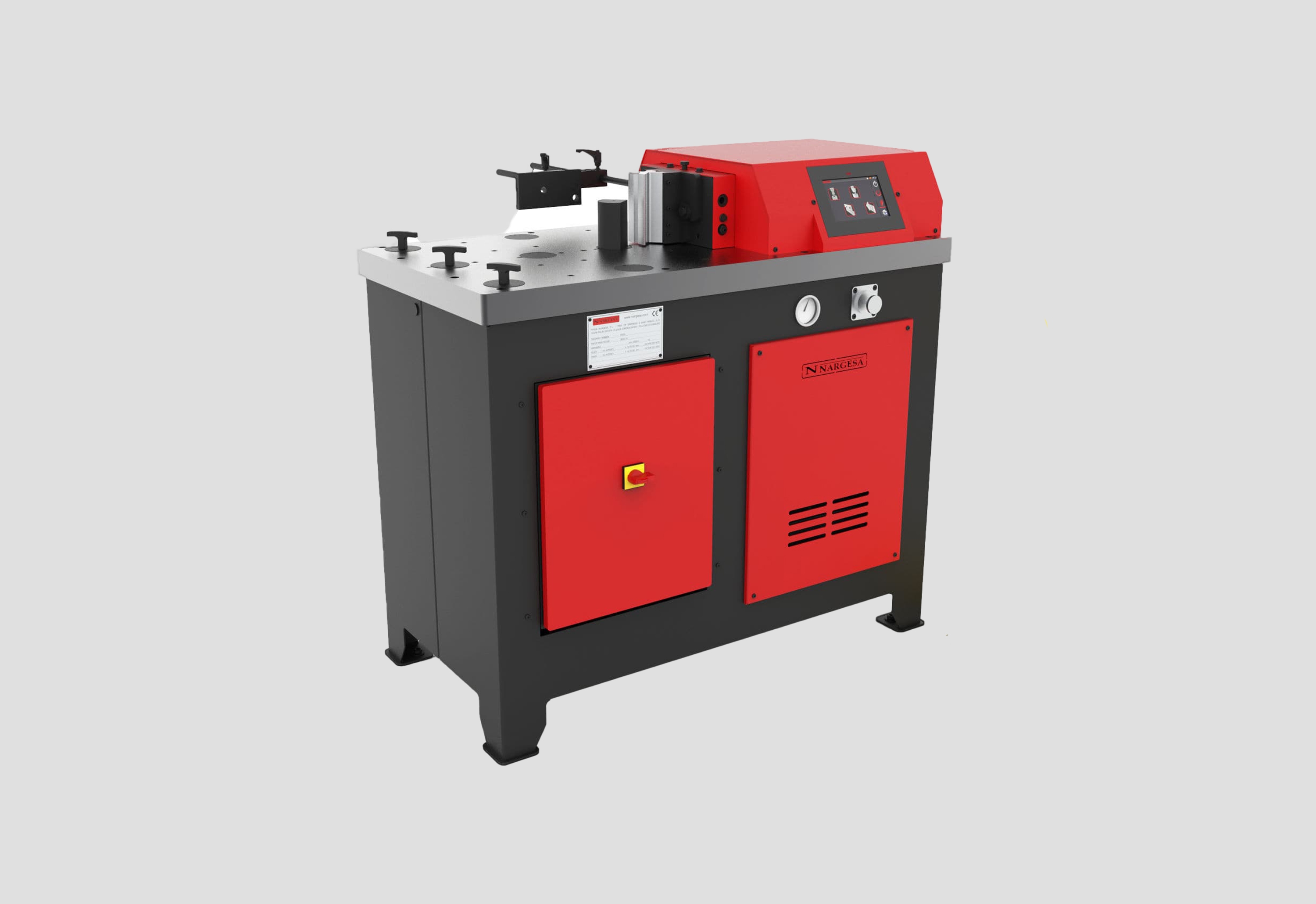

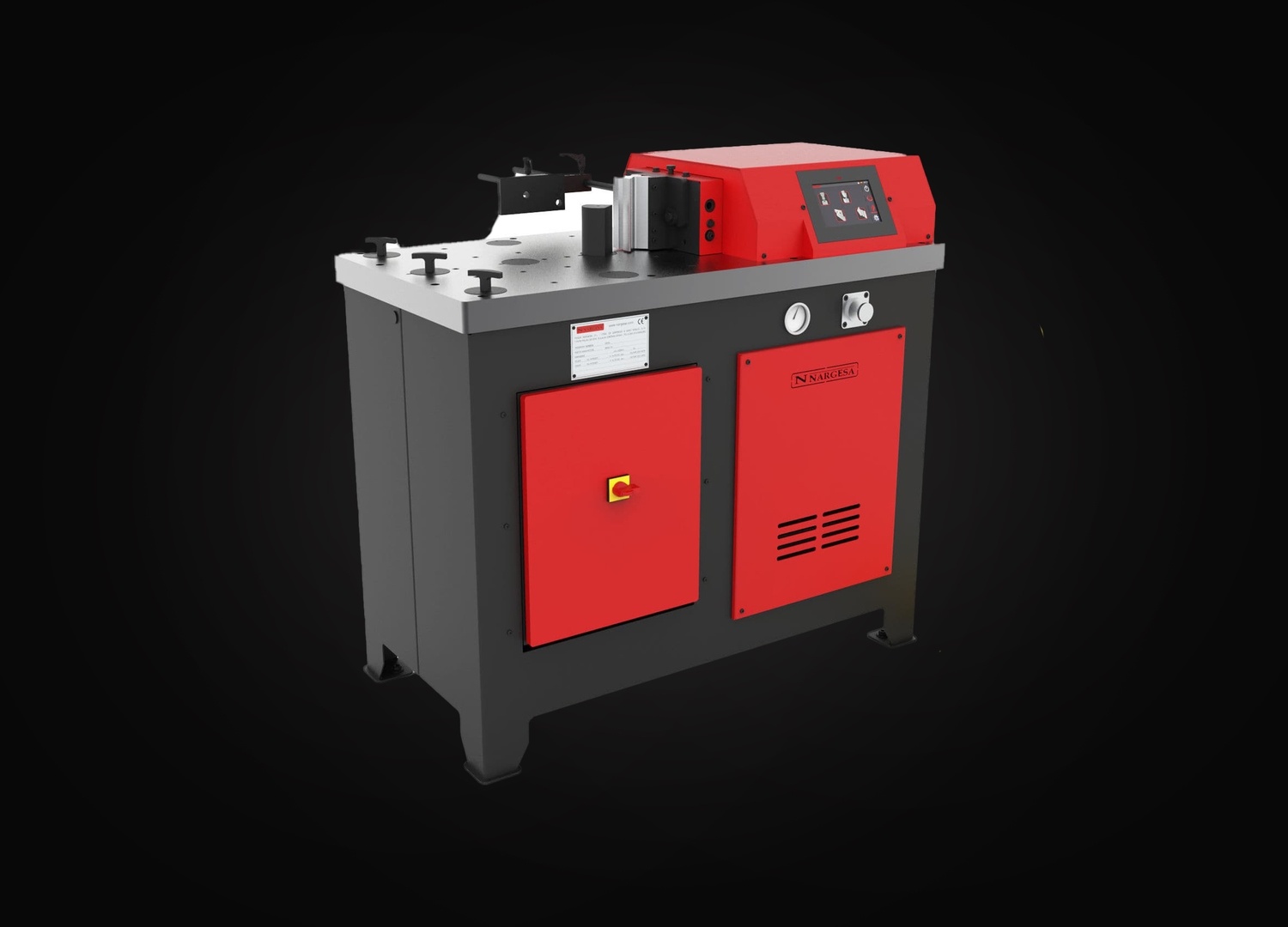

We distribute advanced CNC-controlled horizontal hydraulic bending machines across Saudi Arabia and the GCC, including the versatile Nargesa PP200CNC. Equipped with Industry 4.0 technology, these machines offer precision in bending, folding, cutting, notching, and cold shaping of tubes, profiles, flat bars, and rods. Ideal for forging, pipe expansion/reduction, punching, and assembly, they support a wide range of industrial applications. Capable of pipe bending up to 150º and profile forming with straight ends, they are perfect for manufacturing flanges, handles, and balusters. Robust, easy to use, and highly adaptable, our horizontal bending machines in Saudi Arabia are the smart choice for workshops seeking efficiency, reliability, and multifunctional performance in metalworking operations.

Specifications

Feature	Details
Operating Modes	Manual or Automatic
Springback Correction	Automatic
Piece Counter	Included
Alarm System	On-screen diagnostics
Preventive Maintenance Alerts	Automatic
Remote Connection	Supported
Touch Screen	7″ Color Display
Safety Pedal	Double-acting hold pedal
Piston Guidance	Mechanically guided
Pressure Regulation	Integrated
Tooling Support Table	600 × 1170 mm
Working Height	950 mm
Motor Power	2.2 kW / 3 HP at 1400 rpm
Electric Tension	230/400 V (Three-phase)
Current Intensity	9 / 5 A
Hydraulic Pressure	50 – 215 Kg/cm²
Hydraulic Pump Flow Rate	7.5 litres/min
Hydraulic Tank Capacity	27 litres

Advantages:

NEW Control Panel: Boasting a user-friendly interface, the latest 4.0 technology, and enhanced precision, this control panel makes operation a breeze.
Quick and Effortless Start-up: The machine arrives fully assembled; all that’s needed is to connect it to the power source and start it up.
Versatility at Your Fingertips: The Nargesa PP200 comes with an extensive catalog of optional tooling. (Refer to the bottom of the page for details on optional tooling and a sample video).
Convenient Tooling Fabrication: Customers or any skilled toolmaker can easily craft dies and punches.
Risk-Free Folding Operation: Unlike traditional press brakes, there’s no risk of damaging punches and dies when working with thick materials.
Precision in Folding: This horizontal bending press brake allows for the creation of folds in flat bars and sheets, achieving completely closed shapes. It excels in tasks that conventional press brakes find challenging.
Swift Tool Change: Switching between punches and dies typically takes no more than 30 seconds.
