Tube and Pipe Bending Machines in Saudi Arabia

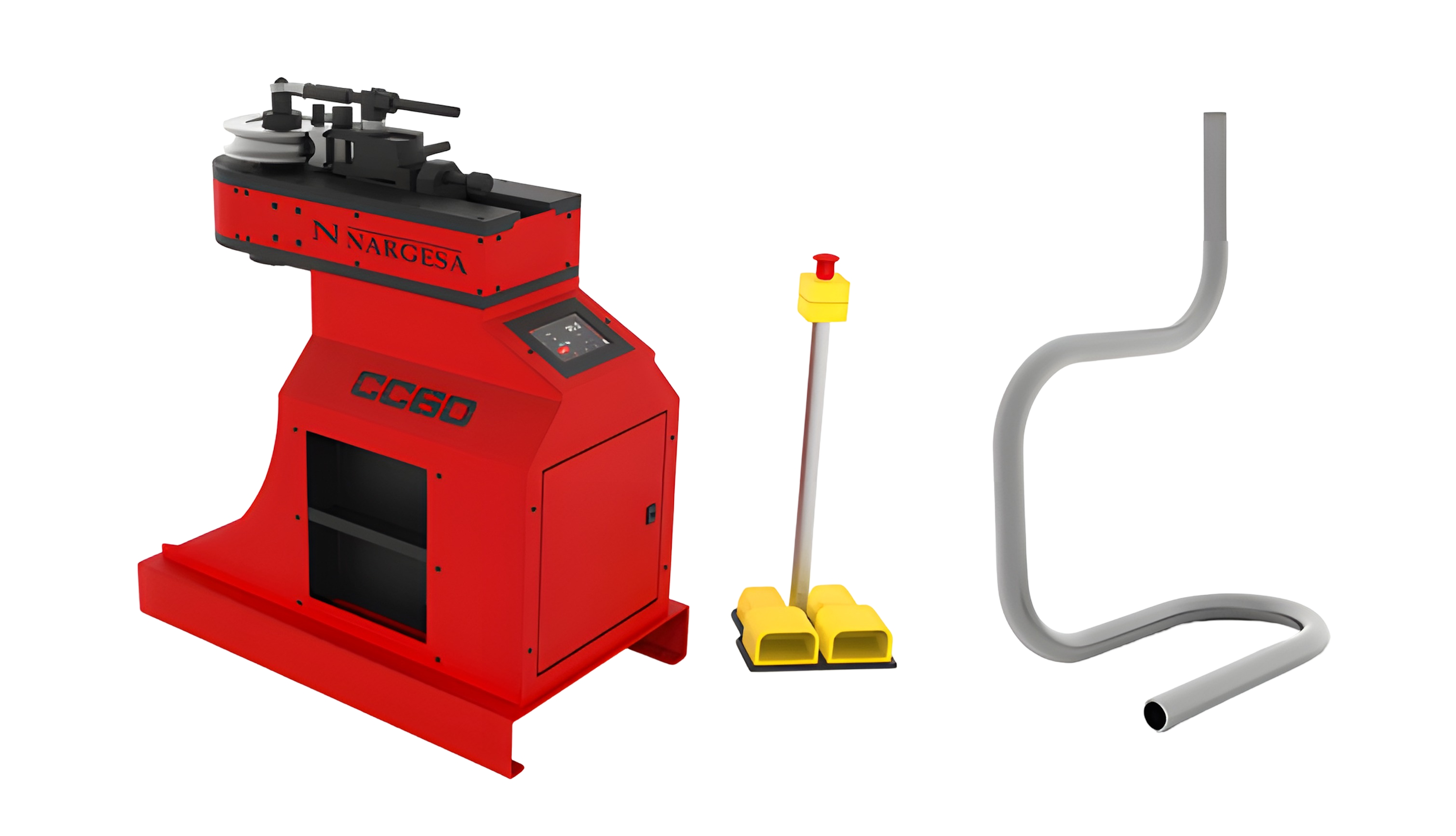

CC60 Non-mandrel rotary tube and pipe bender
The latest iteration of the CC60 Non-Mandrel Rotary Tube and Pipe Bender sets a new standard in tube-bending technology. Capable of achieving curves of up to 180º on hollow profiles, it delivers the finest bent finishes available in today’s market. Its touch-screen control system provides seamless interaction with a range of standard features, leveraging cutting-edge 4.0 technology. With its modern aesthetic, versatility, and accelerated bending speeds, it stands out as one of the premier machines in our industry. This machine can handle a variety of materials, including round, oval, square, and rectangular shapes, crafted from diverse metals like steel, aluminum, stainless steel, and copper, among others. Book your Tube and Pipe Bending Machines in Saudi Arabia.
|
Feature |
Specification |
|
Max Pipe Size (S275 Steel, Schedule-40) |
Ø 60.3 mm (2") or Ø 57 mm (2-1/4") x 4 mm wall |
|
Max Pipe Size (Aluminum) |
Ø 60.3 mm x 8 mm or Ø 2.375" x 0.315" |
|
Max Pipe Size (Stainless Steel 304/316) |
Ø 60.3 mm x 3 mm or Ø 2.375" x 0.160" |
|
Max Square Tube Size |
40 x 40 x 4 mm or 1.50" x 1.50" x 0.160" |
|
Max Angle of Curvature |
180° |
|
Min Radius of Curvature |
≥ 3 × pipe diameter |
|
Max Radius of Curvature |
320 mm |
|
Rotation Speed |
1.1 to 3.5 RPM (automatic rotation) |
|
Bend Repetition Accuracy |
± 0.1° |
|
Support for Large Diameter Pipes |
Reinforcement tool post arm for pipes > 40 mm |
|
Included Lubricant |
400 ml BEND 8 lubricant |
|
Bend Direction |
Right and left bending capability |
|
Die Changeover Time |
≤ 60 seconds |
|
Technology |
Industry 4.0 ready |
|
CNC Control System |
7" touchscreen, supports 20+ languages |
|
Operator Safety Features |
Safety pedals on both right and left sides |
|
Tool Storage |
Side shelving included |
|
Bend Die Material |
Tempered steel |
|
Counter Die Material |
Bronze alloy (minimizes marking) |
|
Program Storage Capacity |
Up to 10,000 programs |
CC60 Non-mandrel rotary tube and pipe bender
The latest CC90 Non-Mandrel Rotary Tube and Pipe Bender, belonging to the new generation, is capable of achieving curves of up to 180º on hollow profiles, guaranteeing the highest quality bent finishes available in the current market. Its advanced Touch Screen control system provides users with interaction and access to standard features through cutting-edge 4.0 technology. With its modern design, versatility, and enhanced bending speeds, this machine stands out as one of the top offerings in our industry. It can handle various materials, including round, oval, square, and rectangular shapes, all crafted from a range of different metals such as steel, aluminum, stainless steel, and copper etc.
|
Feature |
Specification |
|
Max Pipe Size (S275 Steel) |
Ø 90 mm (3") — supports Schedule 3", 3½" Whitworth, 3" ISO — 6 mm wall thickness |
|
Max Pipe Size (Aluminum) |
Ø 88.9 mm x 10 mm or Ø 3.5" x 0.393" |
|
Max Pipe Size (Stainless Steel 304/316) |
Ø 88.9 mm x 4 mm or Ø 3.5" x 0.157" |
|
Max Square Tube Size |
60 x 60 x 4 mm or 2.362" x 2.362" x 0.157" |
|
Max Angle of Curvature |
180° |
|
Min Radius of Curvature |
≥ 3 × pipe diameter |
|
Max Radius of Curvature |
346 mm or 13.60 inches |
|
Rotation Speed |
0.75 to 2.2 RPM (automatic rotation) |
|
Bend Repetition Accuracy |
± 0.1° |
|
Support for Large Diameter Pipes |
Reinforcement tool post arm for pipes > 40 mm |
|
Included Lubricant |
400 ml BEND 8 lubricant |
|
Bend Direction |
Right and left bending capability |
|
Die Changeover Time |
≤ 60 seconds |
|
Technology |
Industry 4.0 ready |
|
CNC Control System |
7" touchscreen, supports 20+ languages |
|
Operator Safety Features |
Safety pedals on both right and left sides |
|
Tool Storage |
Side shelving included |
|
Bend Die Material |
Tempered steel |
|
Counter Die Material |
Bronze alloy (minimizes marking) |
|
Program Storage Capacity |
Up to 10,000 programs |
