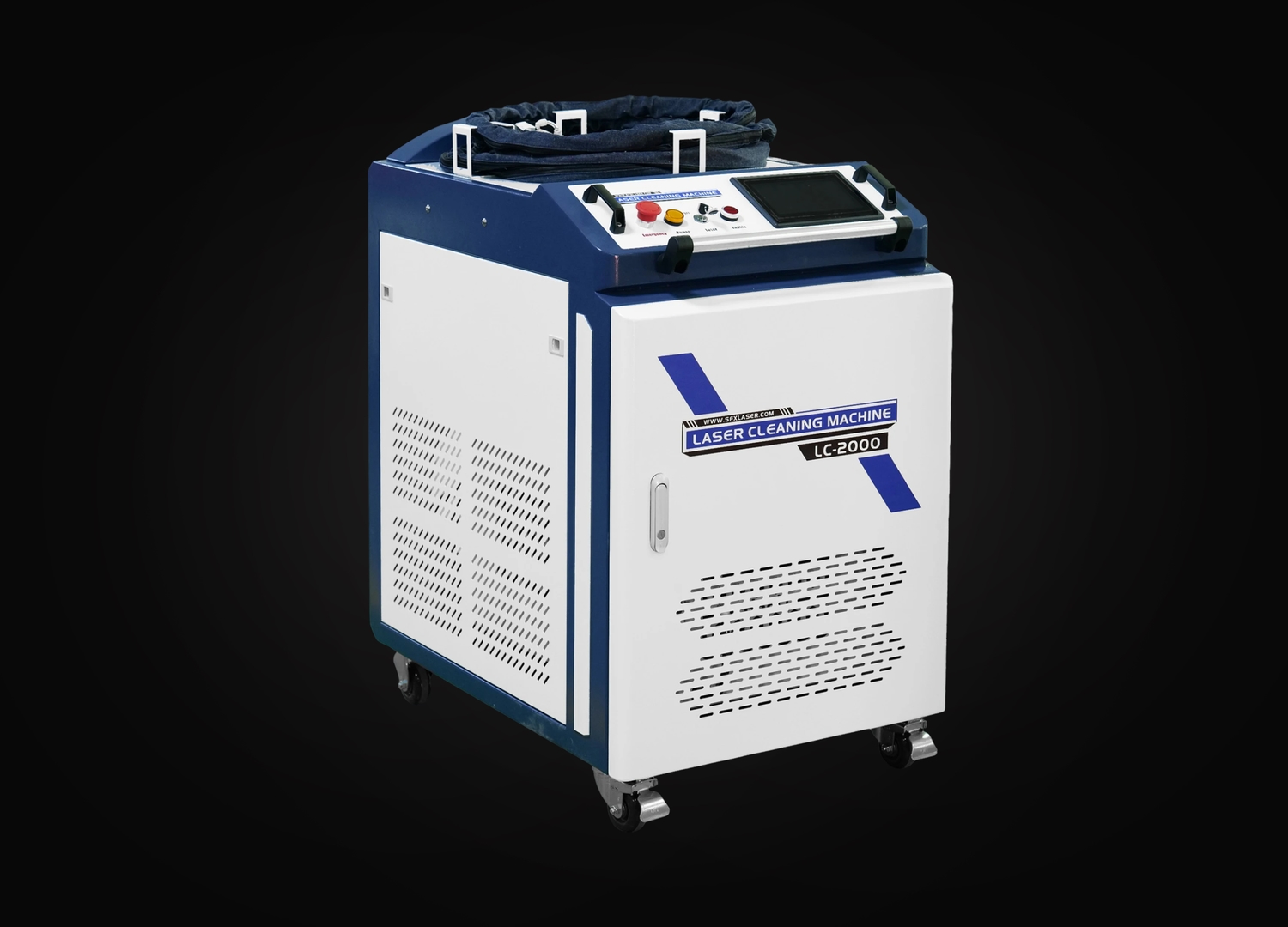

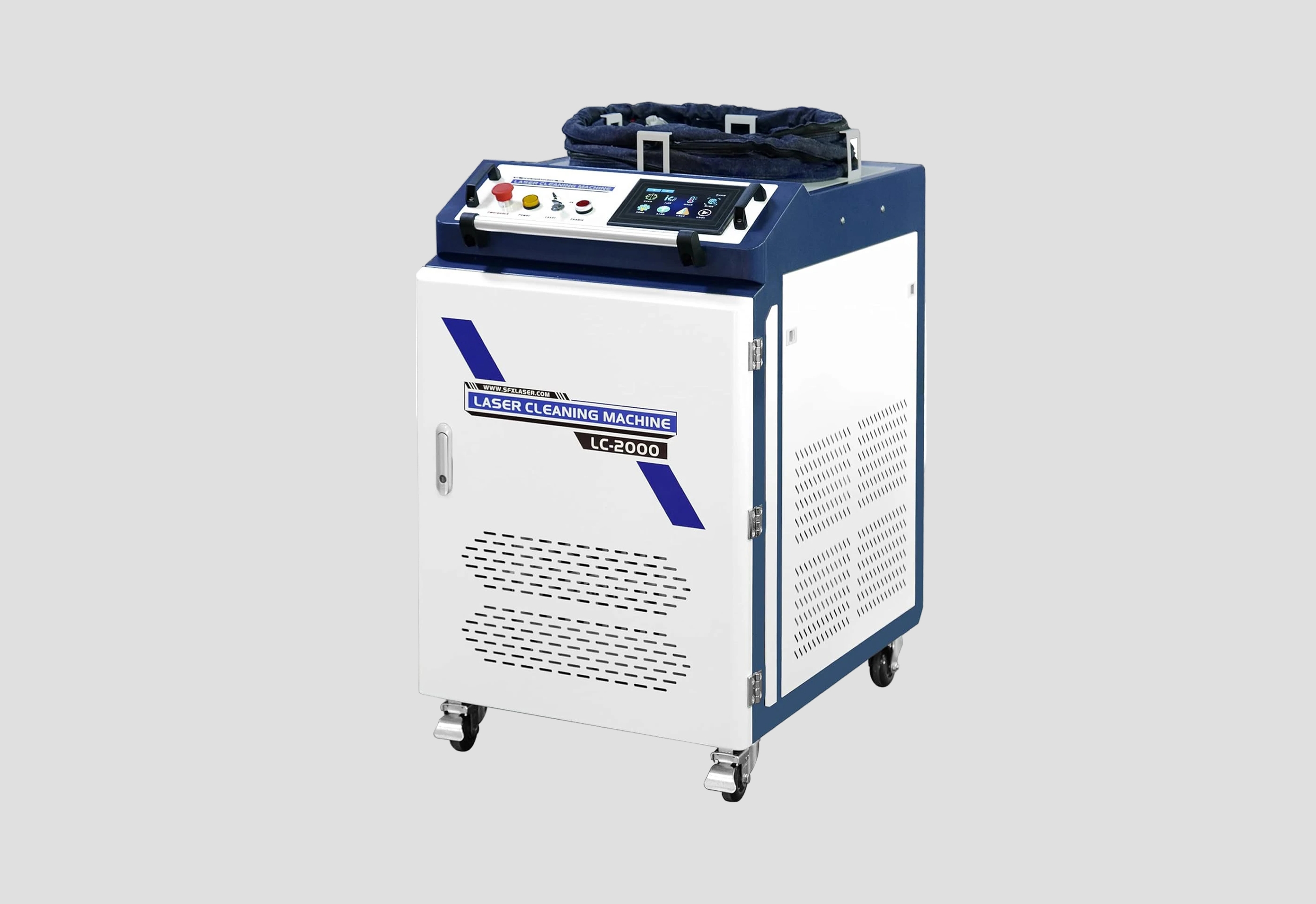

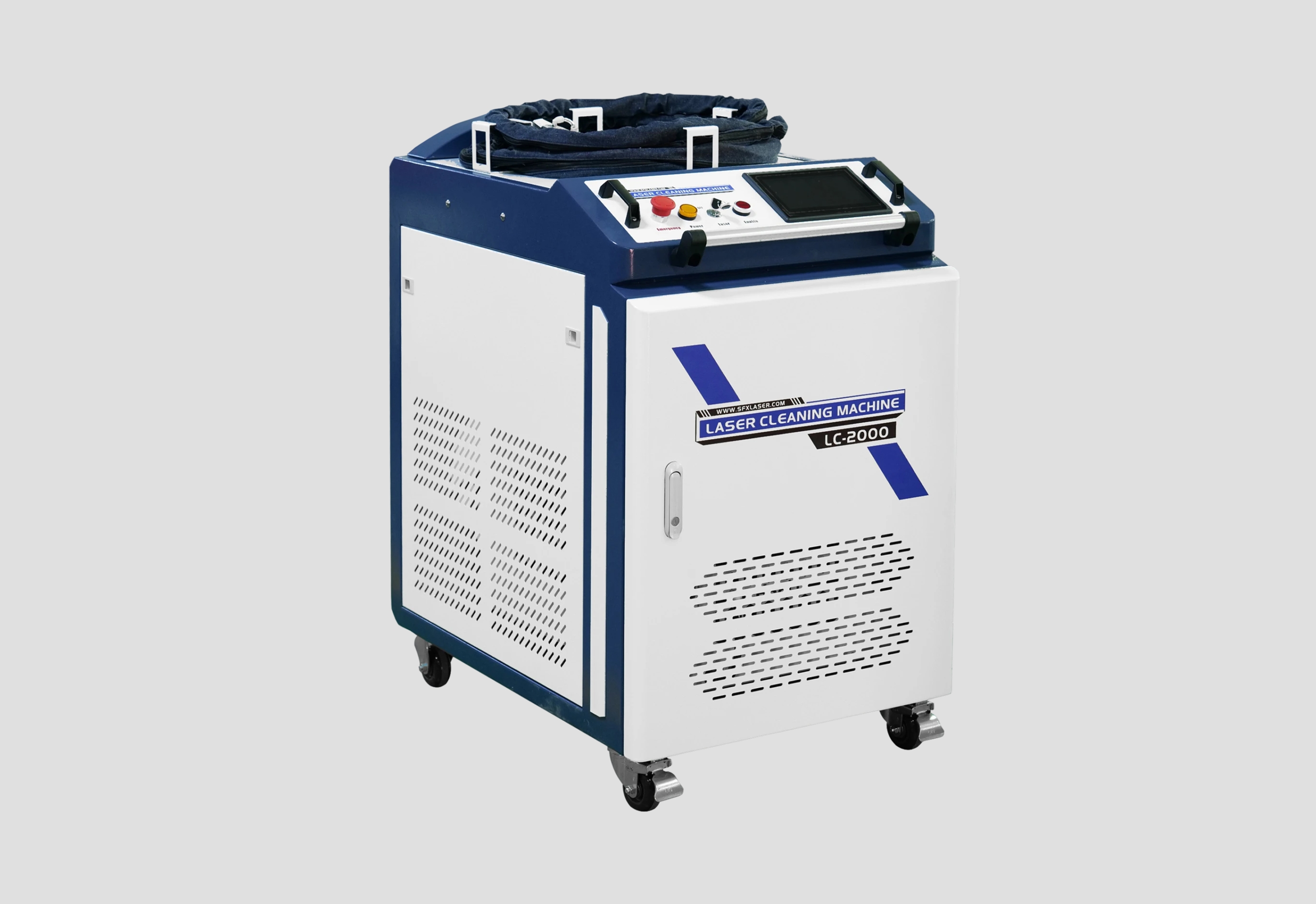

Laser Cleaning and Rust Removal Machines in Saudi Arabia
The laser cleaning machine is a new generation of advanced equipment for surface cleaning. In Saudi Arabia, stainless steel tank cleaning machines are designed for easy installation, operation, and automation. With simple power-on operation, the system performs cleaning without the need for chemicals, abrasives, dust, or water. It offers automatic focusing, adapts to curved surfaces, and delivers high levels of cleanliness while protecting the base material. Book your Laser Cleaning Machines in Saudi Arabia now.
Configuration
| Mode of operation: Handheld/Automated Air cooling system |
| Scanning range (length * width) Single axis:5mm~120mm |
| Scanning frequency 10Hz~300Hz |
| Field lens focal length (mm) 160mm (optional 100mm~500mm) |
| Depth of focus max 15mm |
| Size 800mm×650mm×370mm?0.2 ??? |
| Weight 56kg |
| Weight of cleaning head (including isolator) about 2Kg |
| Power supply voltage Single phase 220V±10%, 50/60Hz AC |
Parameter
| POWER: | 100W |
|---|---|
| LASER TYPE: | Pulse Fiber Laser Generator |
| WAVELENGTH | 1064nm |
| MAXIMUM MARKING LINE | 150mm |
| GROSS POWER | 0.5kwH |
| WARRANTY | 2 Year |
| PULSE ENERGY | 1.5mJ |
| PEAK POWER | 15kW |
| HEAD WEIGHT | Standard head:1.8kg, Anti-shake head:2.0kg |
| SCAN WIDTH | 5mm-120mm (Customized)Continuously Adjustable |
| COOLING | Air Cooling |
| CLEANING PAINT/RUST | 8.0m2/h |
| CLEANING OIL | 9.0m2/h |
| TITANIUM ALLOY/STAINLESS STEEL OXIDE | 8.0m2/h |
| CLEANING ALUMINUM ALLOY OXIDE FILM | 6.0m2/h |
Product features
1. Laser Cleaning control
Using a cleaning control system developed by ourselves for many years, the cleaning card is designed with a physical chip, and the embedded touch control system is the latest dual-core high-speed and added anti-surge and power-off backup functions. It has been highly evaluated in the current market. The overall performance is smooth operation, stable performance, and its efficiency and functions are almost the same as those of international
2. Full machine self-made rate
Except that the laser uses a well-known manufacturer, the connector and power supply are all certified by safety regulations. The other control systems, galvanometers, and the whole machine are all produced by themselves to ensure the highest quality of the whole machine. Each machine can reach more than 65% of self-made rate.
Application cases
1. Carbon steel plate derusting
Sample: Carbon steel plate
Material: carbon structural steel
Cleaning efficiency: 400mm2/s
Cleaning effect: the rust layer is removed cleanly without residue, and the surface is not damaged
Material: carbon structural steel
Cleaning efficiency: 400mm2/s
Cleaning effect: the rust layer is removed cleanly without residue, and the surface is not damaged
2. Paint removal of sheet metal parts
Sample: Sheet metal parts
Material: carbon steel (with no bottom paint)
Cleaning efficiency: 900mm2/s
Cleaning effect: the paint layer is removed cleanly without residue, and the substrate is not damaged
Material: carbon steel (with no bottom paint)
Cleaning efficiency: 900mm2/s
Cleaning effect: the paint layer is removed cleanly without residue, and the substrate is not damaged
3. Rust removal of sheet metal parts
Sample: Sheet metal parts
Material: carbon steel
Cleaning efficiency: 900mm2/s
Material: carbon steel
Cleaning efficiency: 900mm2/s
4. Alumina board renovation
Sample: Aluminum alloy
Material: 6063
Cleaning efficiency: 900mm2/s
Cleaning effect: the paint layer is removed cleanly without residue, and the substrate is not damaged
Material: 6063
Cleaning efficiency: 900mm2/s
Cleaning effect: the paint layer is removed cleanly without residue, and the substrate is not damaged
