Drill And Tool Grinding Machine in Saudi Arabia
As a trusted supplier across Saudi Arabia and neighboring Gulf countries, we provide reliable grinding solutions that support consistent tool performance, extended tool life, and reduced downtime. PEIPING machines are built for durability and high repeatability, ensuring professional results in every use.
Our Drill and Tool Grinding Machines in Saudi Arabia, manufactured by the renowned PEIPING PRECISION, are designed for fast, accurate, and hassle-free sharpening of drills, end mills, and cutting tools. These machines offer easy setup and intuitive operation, making them ideal for workshops, tool rooms, and maintenance departments that demand efficiency without compromising on precision.
Main Product

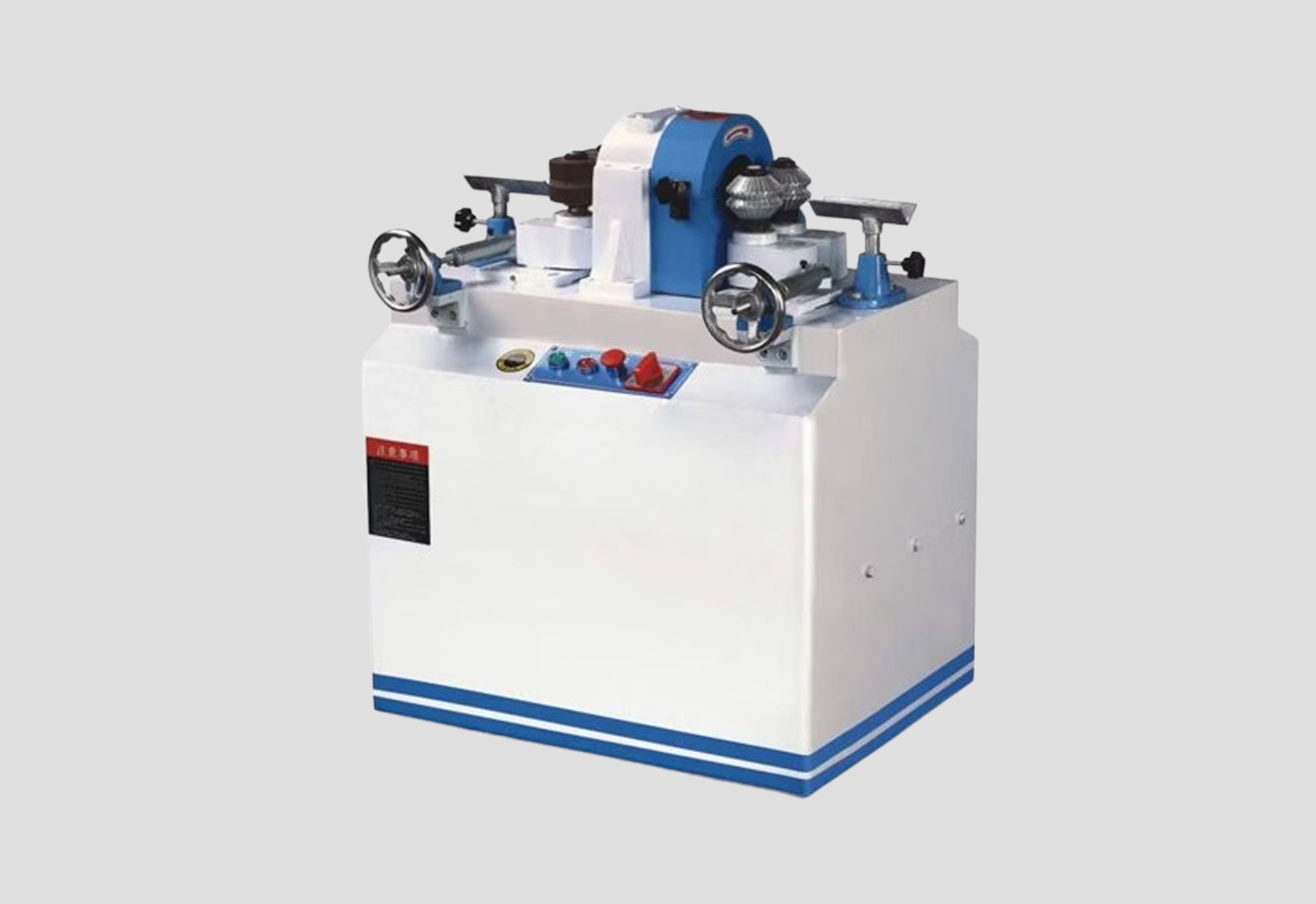

UNIVERSAL CUTTER GRINDER
- Grinding Size: Dia.2mm ~ Dia.32mm(straight or taper shank).
- Grinding Capacity: drills, step drills, NC drills, taps, counter sink drills, end mill lips, round bars.
Specifications:
- Longitudinal travel of table: 120mm
- Cross travel of saddle: 135mm
- Rotary angle of wheel head: 360°
- Point angle: 90° ~ 180°
- Size of wheel: 125 x 50 x 31.75mm
- Speed of wheel: 3,600 RPM
- Motor: 3/4 HP, 110V / 220V / 380V
- W. / G.W.: 95kgs / 120kgs
- Size of packing (L x W x H): 800 x 550 x 670mm
Features:
- Double wheels. Only to rotate the motor when want to grind the tool with different materials. It can increase the safety & save the time for replacing & repairing the grinding wheel.
- Adopts precise 6 pawl self-centering chuck, clipping one time and can grind th blade of drills and do the repairing of drills abdomen. The angle of drill both sides and the length of blade are same after grinding. It can keep the accuracy of the center without off center.
- Unique cam-replacement-free.
- Simple to set up.
- Easy to operate.
- Grinding fast and high accuracy.

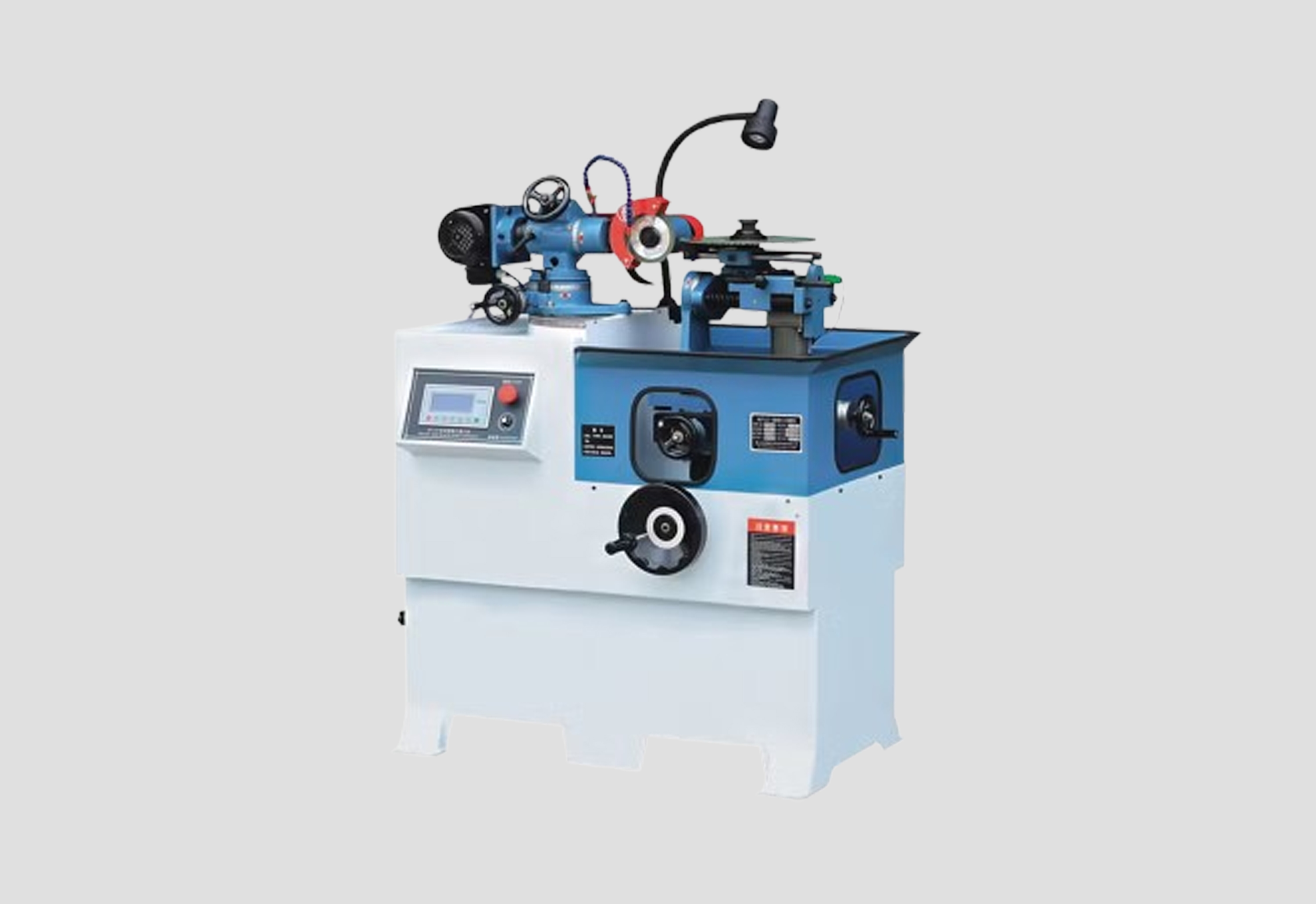

Universal Drill & Tap Grinder
- Grinding Size:PP-60N: Dia.2 ~ Dia.60mm (straight or taper shank)
PP-80N: Dia.4 ~ Dia.80mm (straight or taper shank)
PP-100: Dia.5 ~ Dia.100mm (straight or taper shank) - Grinding Capacity: Drills,Step Drills, Counter sink drills, taps, end mills, round bars…etc.
Specifications:
- Longitudinal travel of table: 250mm
- Cross travel of saddle: 180mm
- Vertical adjustment of wheel head: 165mm
- Rotary angle of wheel head: 360°
- Clearance angle: 0° ~ 18°
- Point angle: 40° ~ 180°
- Size of wheel:
- 180 x 32 x 31.75mm
- 180 x 19 x 31.75mm
Speed of wheel: 3,600 RPM
- Motor:
- 60N: 1/2 HP, 220V / 380V
- 80N/100: 1 HP, 220V / 380V
- W. / G.W.:
- 60N: 270 / 320
- 80N: 310 / 370
- 100: 330 / 390
- Size of packing (L x W x H):
- 60N: 950 x 1,000 x 1,540mm
- 80N/100: 1,120 x 1,000 x 1,540mm
Features:
- Adopt the precise slef-centering chuck, clipping one time then can grind the blade of drills and do the paring of drills abdomen.
- The angle of drills and the length of the blade are same after grinding. It can keep the dril center without off center.
- The motor main spindle can install with two wheels. The blade and the center of drill can be grinded one time. It can save the time for replaceing the grinding wheel.
- The motor can be adjusted 160mm up & down, it can increase the control of machinery.
- Dual Cams
- Grinding fast and high accuracy.
- Simple to set up.
- Easy to operate.

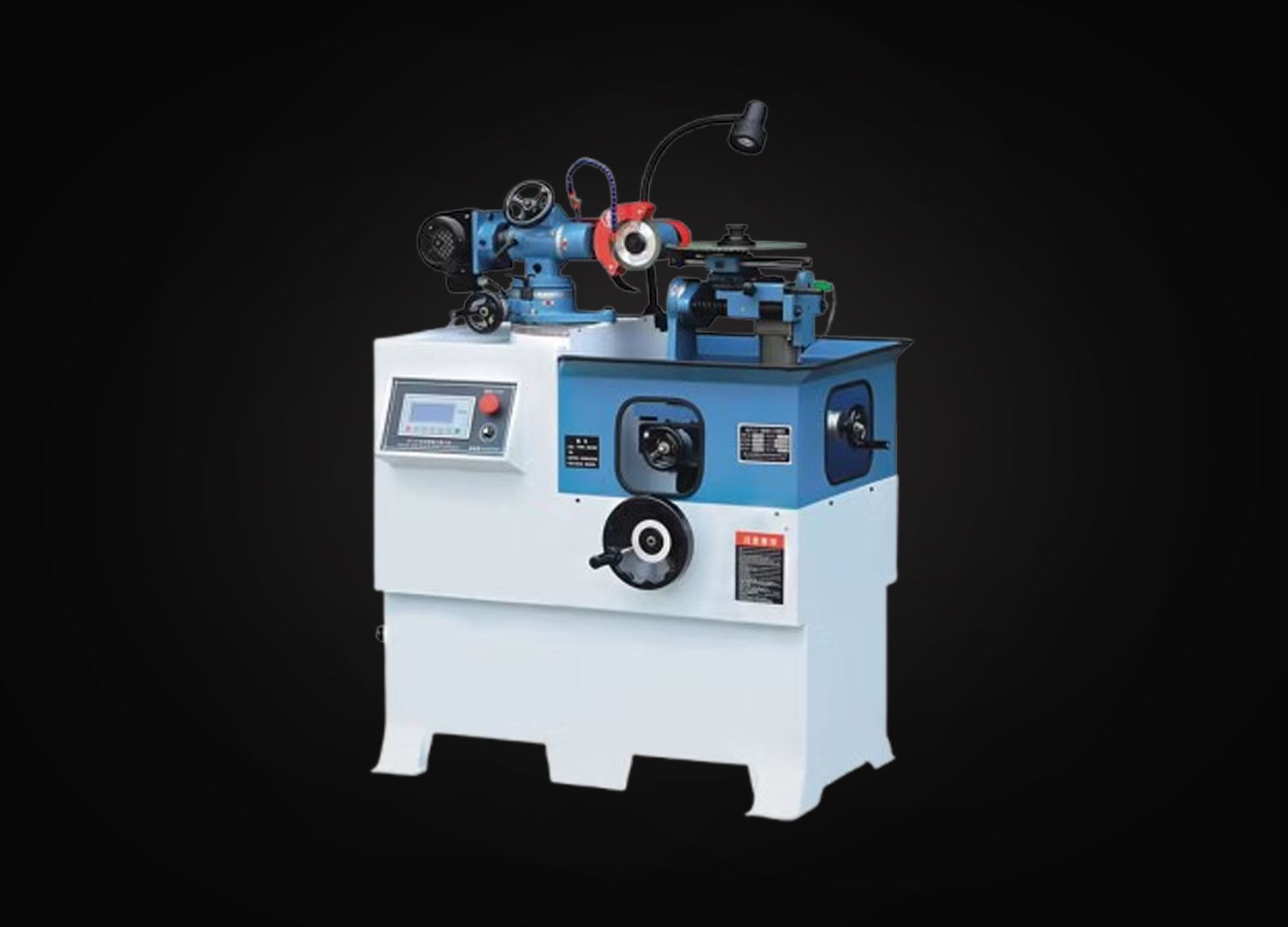

UNIVERSAL TOOL GRINDER
Specifications:
- Longitudinal travel of table: 230mm
- Cross travel of saddle: 180mm
- Vertical adjustment of wheel head: 120mm
- Rotary angle of wheel head: 360°
- Rotary angle of up-down spindle: 360°
- Working table area: 620 x 190mm
- Size of wheel:
- 180 x 25 x 31.75mm
- 125 x 50 x 31.75mm
- Speed of wheel: 3,600 RPM
- Motor: 3/4 HP, 110V / 220V / 380V
