CNC Roller Levelling machines in Saudi Arabia
CNC Roller Leveler machines are advanced tools used to achieve precise and uniform flatness in metal sheets and coils. Utilizing Computer Numerical Control (CNC) technology, these machines offer automated, high-accuracy leveling that enhances production efficiency and product quality.
Through precision rollers, CNC Levelers exert controlled pressure to eliminate imperfections such as coil set, waviness, and crossbow. Sophisticated control systems continuously monitor and adjust roller pressure based on material properties, ensuring consistent results across various thicknesses and metal types. Automation reduces manual setup, minimizes operator error, and supports high-volume production with repeatable accuracy. This makes CNC Roller Levelers particularly valuable in industries with tight tolerances and demanding standards.
These machines are widely used in manufacturing, automotive, and aerospace sectors, where flat, stress-free metal components are critical to performance and safety. Whether preparing material for stamping, forming, or assembly, CNC Roller levelling machines in Saudi Arabia ensure the flatness and structural integrity needed for downstream processes.
Through precision rollers, CNC Levelers exert controlled pressure to eliminate imperfections such as coil set, waviness, and crossbow. Sophisticated control systems continuously monitor and adjust roller pressure based on material properties, ensuring consistent results across various thicknesses and metal types. Automation reduces manual setup, minimizes operator error, and supports high-volume production with repeatable accuracy. This makes CNC Roller Levelers particularly valuable in industries with tight tolerances and demanding standards.
These machines are widely used in manufacturing, automotive, and aerospace sectors, where flat, stress-free metal components are critical to performance and safety. Whether preparing material for stamping, forming, or assembly, CNC Roller levelling machines in Saudi Arabia ensure the flatness and structural integrity needed for downstream processes.

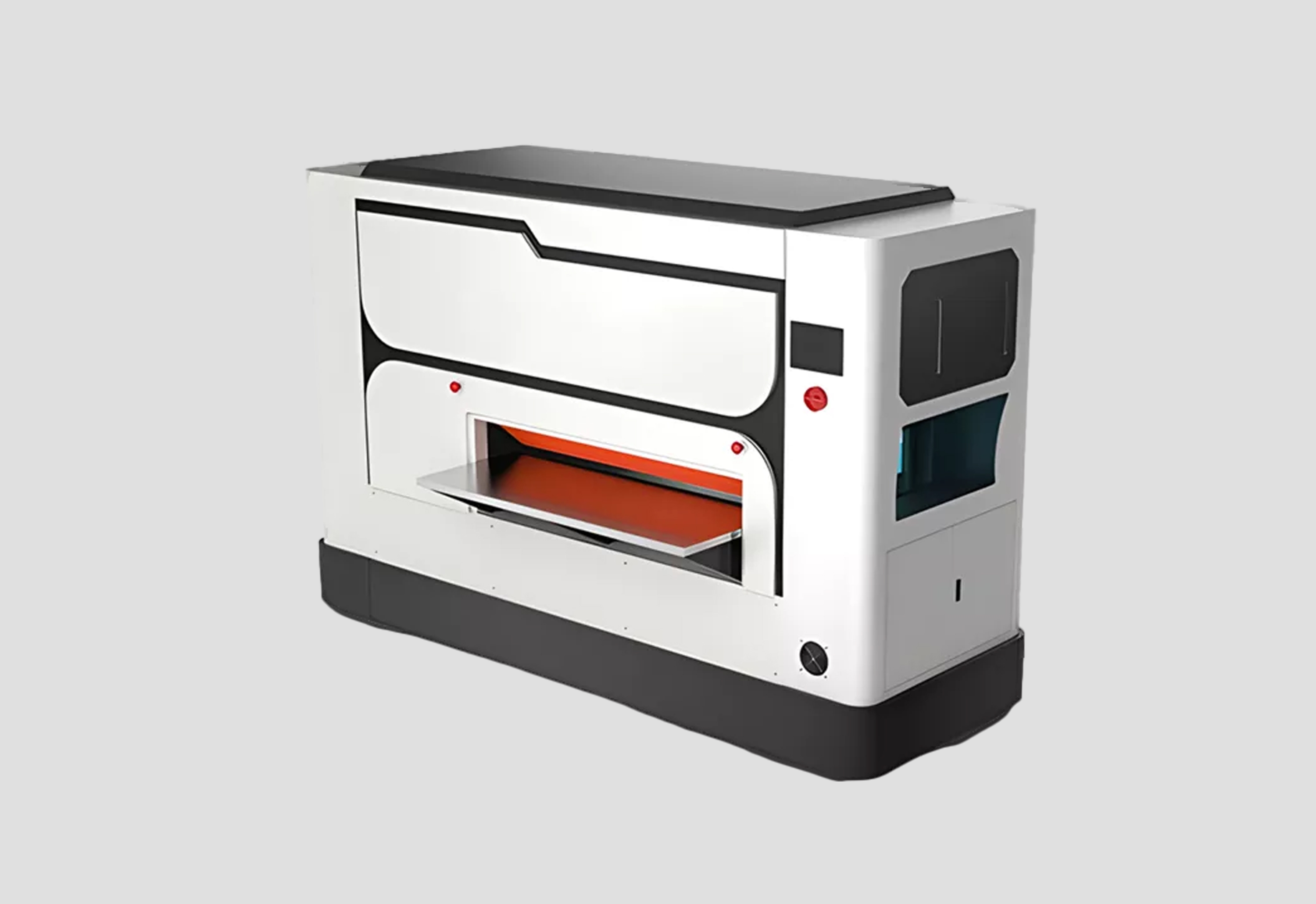

LM-50 Series CNC Precision 4-high Roller Levelling Machine
Main Features
The 4-high roller levelling machine is a semi-automatic and cost-effective tool designed for levelling various metal workpieces, including steel, aluminum, copper, stainless steel, mesh sheets, laser-cut plates, alloy plates, and more. The manual adjustment of the roller gap is facilitated by a digital display guide, allowing operators to use two hand wheels to fine-tune the straightening performance of the leveller. This machine finds applications in fabricating metal parts for vehicles, aviation, high-speed trains, chain boards, saw blades, stamping parts, sheet metal, furniture, and electrical appliances.
By balancing internal stress and enhancing flatness, the machine achieves micron-grade accuracy, ensuring workpieces meet the required standards for subsequent processes like bending and welding. The roller leveller features a multi-layer arrangement of numerous levelling rollers with minimal spacing, utilizing the “Bauschinger effect” to gradually align metal fibers, eliminate internal stress, and improve flatness.
To withstand heavy pressure without deformation, support rollers are stagger-arranged, providing ample rigidity to the entire equipment. The four-high layer structure, comprising upper and lower support roller columns and upper and lower levelling roller groups, guarantees stable, efficient, and high-quality levelling performance. Manual adjustment of the levelling roller gap is facilitated by a digital display guide, allowing operators precise control over the straightening performance. The 4-high precision levelling machine incorporates both upper and lower support assistant roller sets and levelling roller sets, ensuring all rollers undergo thorough processing to maintain levelling accuracy.
By balancing internal stress and enhancing flatness, the machine achieves micron-grade accuracy, ensuring workpieces meet the required standards for subsequent processes like bending and welding. The roller leveller features a multi-layer arrangement of numerous levelling rollers with minimal spacing, utilizing the “Bauschinger effect” to gradually align metal fibers, eliminate internal stress, and improve flatness.
To withstand heavy pressure without deformation, support rollers are stagger-arranged, providing ample rigidity to the entire equipment. The four-high layer structure, comprising upper and lower support roller columns and upper and lower levelling roller groups, guarantees stable, efficient, and high-quality levelling performance. Manual adjustment of the levelling roller gap is facilitated by a digital display guide, allowing operators precise control over the straightening performance. The 4-high precision levelling machine incorporates both upper and lower support assistant roller sets and levelling roller sets, ensuring all rollers undergo thorough processing to maintain levelling accuracy.
Range of Application
- Different kinds of metal plate work-piece, such as low carbon steel, Aluminum, copper, stainless steel, high tensile steel etc.
- Perforated metal sheet, circle saw blades, clutch parts, lock panels, knives, automobile and motorcycle metal accessories, stamping parts, and electrical metal parts etc
| Model | LM-50-400A | LM-50-600A | LM-50-800A | LM-50-1000A | LM-50-1300A | LM-50-1600A |
| Max. Leveling Width | 400mm | 600mm | 800mm | 1000mm | 1300mm | 1600mm |
| Roller Diameter | 50mm | |||||
| Max Plate Thickness | 4mm | |||||
| Leveling Thickness Range | 1.0-4.0mm | |||||
| Min. Workpiece Size | 15*100mm | |||||
| Leveling Speed | 0-12m/min | |||||
| Leveling Roller Quantity | 19pcs(Upper 9pcs/Lower 10pcs) | |||||
| Backup Roller Column | Both 2 columns up and down | Both 3 columns up and down | Both 4 columns up and down | Both 5 columns up and down | Both 6 columns up and down | Both 7 columns up and down |
| Leveling Roller Gap Adjust Method | Four points auto. Adjust driven by servo motors | |||||
| Voltage | AC 3 Phase 380V 50HZ(Can customize) | |||||

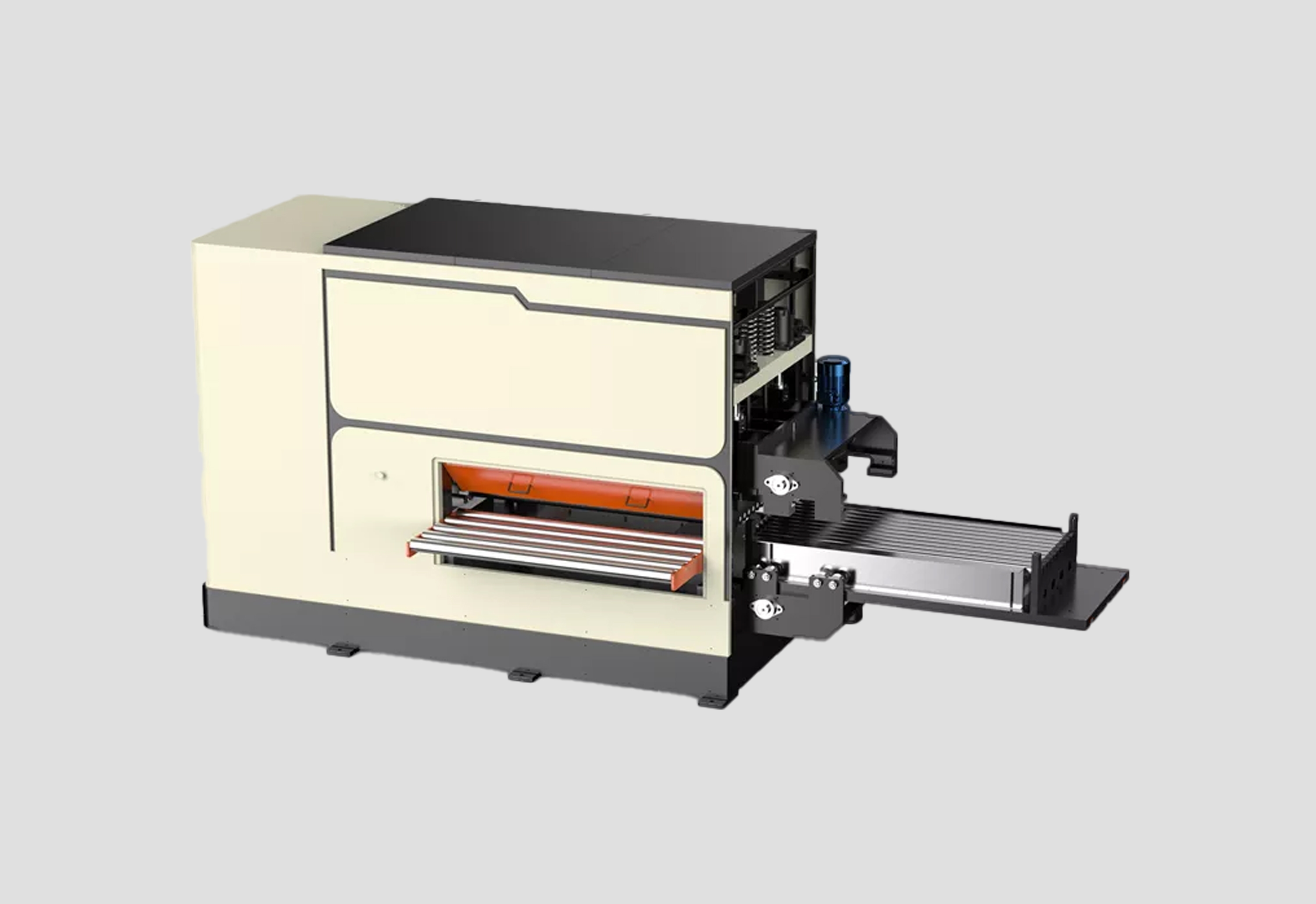

LM-42 Series Manual Precision 4-high Levelling Machine Roller Leveler
Main Features
The roller leveller machine is equipped with numerous levelling rollers arranged in multiple layers with minimal spacing between them. Utilizing the “Bauschinger effect,” the sheet metal undergoes repeated twisting to gradually align metal fibers, eliminating internal stress and enhancing flatness. Staggered support rollers ensure that levelling rollers bear heavy pressure in a balanced manner without bending deformation, providing the entire equipment with sufficient rigidity. The four-high layer structure consists of upper and lower support roller columns and upper and lower levelling roller groups, ensuring a stable, efficient, and high-quality levelling performance.
For manual adjustment of the levelling roller gap, operators can use the digital display guidance to turn the two hand wheels and fine-tune the leveler’s straightening performance. The 4-high precision levelling machine includes both upper and lower support assistant roller sets and levelling roller sets. All rollers undergo meticulous processing to ensure levelling accuracy. High-quality bearing steel is used for all levelling rollers, with processes such as quenching, tempering, precise machining, hard chrome plating, and grinding. The surface hardness is maintained at 58±2°, with a chrome layer thickness of ≥0.05mm.
The backup rollers (support rollers) adopt Japan export roller bearings, with two or more columns of backup rollers uniformly distributed in the upper and lower levelling roller sets to ensure balanced pressure on the levelling rollers. All gears are made of 20CrMnTi material, undergoing processes such as forging, tempering, surface carburization, and precise grinding, achieving a grade of IT6.
For manual adjustment of the levelling roller gap, operators can use the digital display guidance to turn the two hand wheels and fine-tune the leveler’s straightening performance. The 4-high precision levelling machine includes both upper and lower support assistant roller sets and levelling roller sets. All rollers undergo meticulous processing to ensure levelling accuracy. High-quality bearing steel is used for all levelling rollers, with processes such as quenching, tempering, precise machining, hard chrome plating, and grinding. The surface hardness is maintained at 58±2°, with a chrome layer thickness of ≥0.05mm.
The backup rollers (support rollers) adopt Japan export roller bearings, with two or more columns of backup rollers uniformly distributed in the upper and lower levelling roller sets to ensure balanced pressure on the levelling rollers. All gears are made of 20CrMnTi material, undergoing processes such as forging, tempering, surface carburization, and precise grinding, achieving a grade of IT6.
Range of Application
- All kinds of metal plate work-piece, such as low carbon steel, Aluminum, copper, stainless steel, high tensile steel etc.
Perforated metal sheet, circle saw blades, clutch parts, lock panels, knives, automobile and motorcycle metal accessories, stamping parts, and electrical metal parts etc
| Model | LM-42-400M | LM-42-600M | LM-42-800M |
| Max. Leveling Width | 400mm | 600mm | 800mm |
| Roller Diameter | 42mm | 42mm | 42mm |
| Max Plate Thickness | 3mm | 3mm | 3mm |
| Leveling Thickness Range | 0.8-3.0mm | 0.8-3.0mm | 0.8-3.0mm |
| Min. Workpiece Size | 10*70mm | 10*70mm | 10*70mm |
| Leveling Accuracy | 0.05-0.2mm | 0.05-0.2mm | 0.05-0.2mm |
| Leveling Speed | 0-6m/min | 0-6m/min | 0-6m/min |
| Leveling roller quantity | 19pcs(Upper 9pcs/Lower 10pcs) | ||
| Backup Roller Column | Both two columns upper and lower leveling roller set | Both three columns upper and lower leveling roller set | Both four columns upper and lower leveling roller set |
| Leveling Roller Gap Adjust Method | Four Points Manual Adjust | ||
| Voltage | AC 3Phase 380V 50HZ(Can customize) | ||
| Size | / | 1100*1450*1650 | 1500*1450*1650mm |
| Weight | / | 1300kg | 2100kg |
